Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

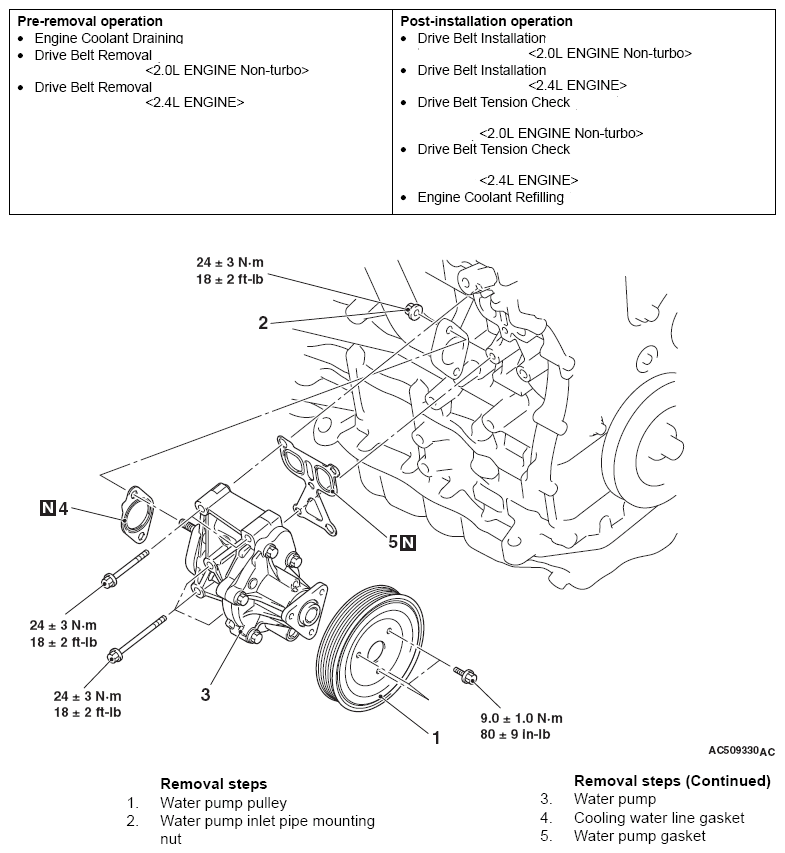

Fig 1: Water Pump Replacement Components With Torque Specifications (2.0L Engine Non-Turbo, 2.4L Engine)
G06671772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
