Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

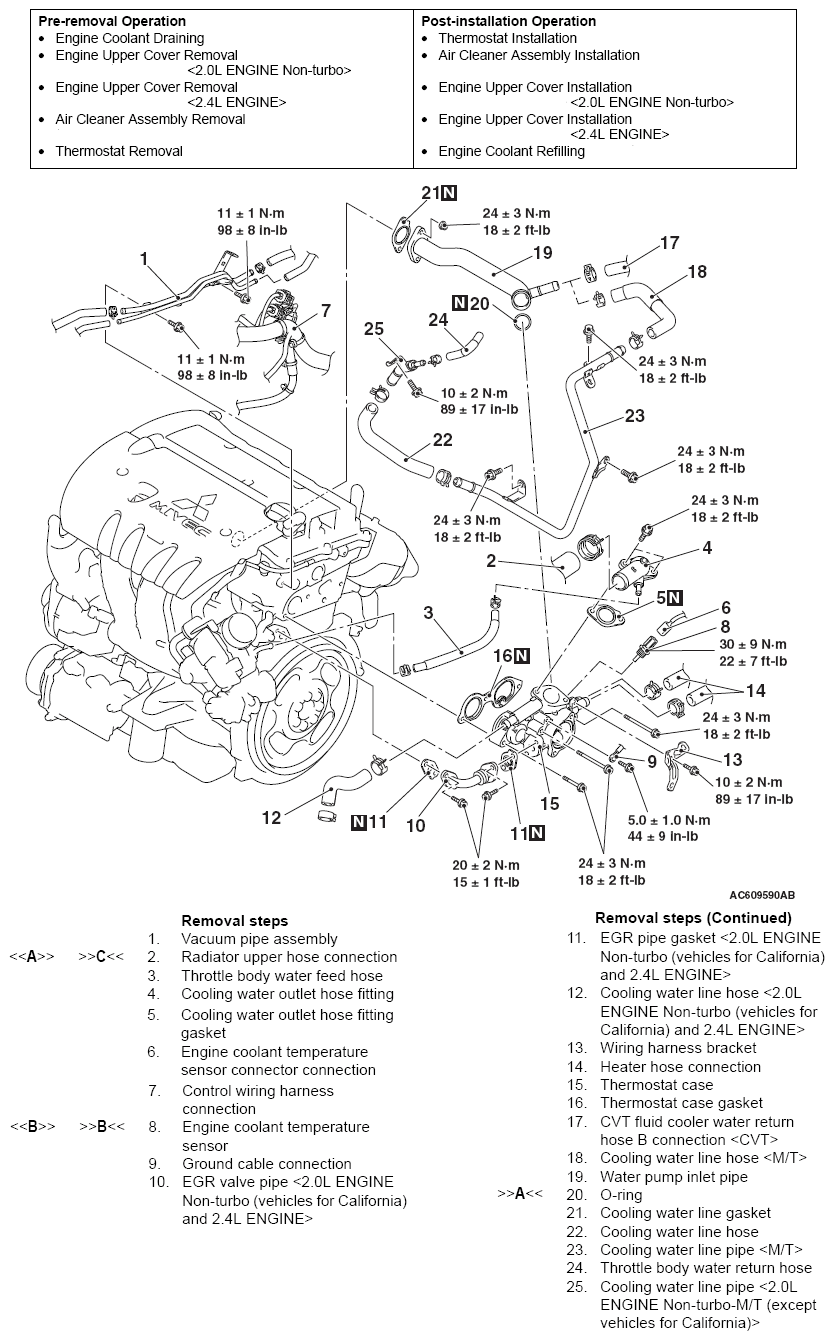

Fig 1: Water Hose And Water Pipe Replacement Components With Torque Specifications
G06671774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
