>>B<< Engine Coolant Temperature Sensor Installation

  1. Apply the specified sealant to the engine coolant temperature sensor thread.

    Specified sealant: Three bond 1324N or equivalent

    NOTE: Install the engine coolant temperature sensor immediately after applying sealant.
    Fig 1: Identifying Engine Coolant Temperature Sensor
    G06671778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.
  2. Use special tool MB992042 to tighten the engine coolant temperature sensor to the specified torque.

    Tightening torque: 30 ± 9 N.m (22 ± 7 ft-lb)

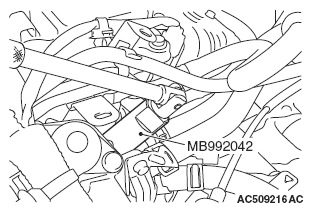

    Fig 2: Removing Engine Coolant Temperature Sensor
    G06671779Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
