Removal And Installation (2.0L Engine Turbo): Notes

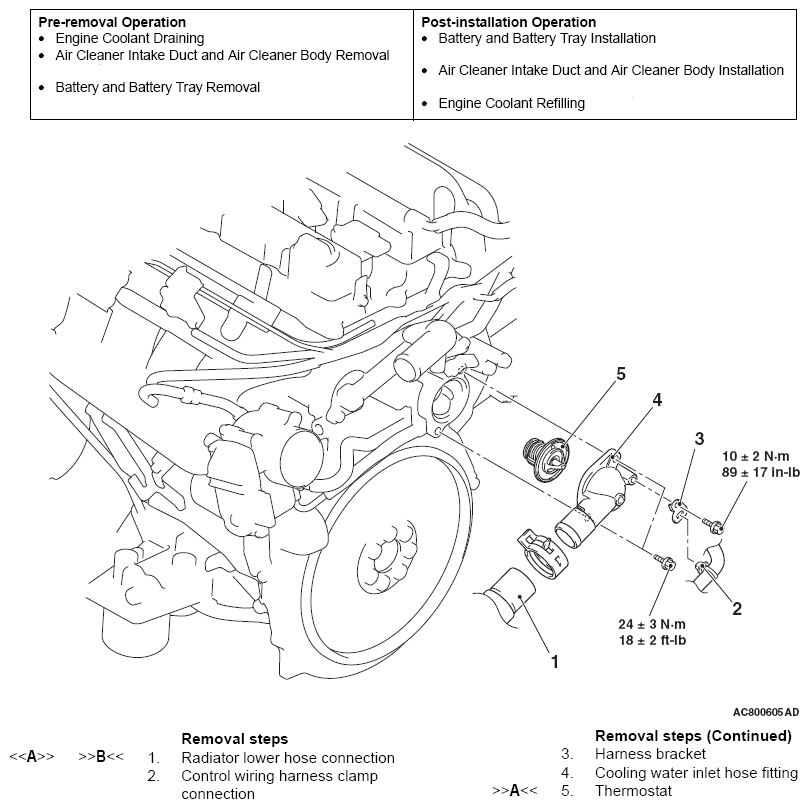

Fig 1: Thermostat Replacement Components With Torque Specifications

G06671766

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
