Special Tools

SPECIAL TOOLS REFERENCE

Tool	Tool number and name	Supersession	Application

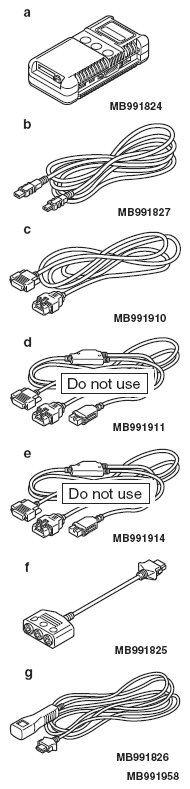

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) Vehicle communication interface (V. C. I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Checking diagnostic trouble code (DTC). Checking actuator test.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Checking the continuity and measuring the voltage at the harness connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	General service tool	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991871 LLC changer	General service tool	Coolant refilling
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992042 Water temp sensor wrench	MB992042-01	Engine coolant temperature sensor removal and installation
