Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

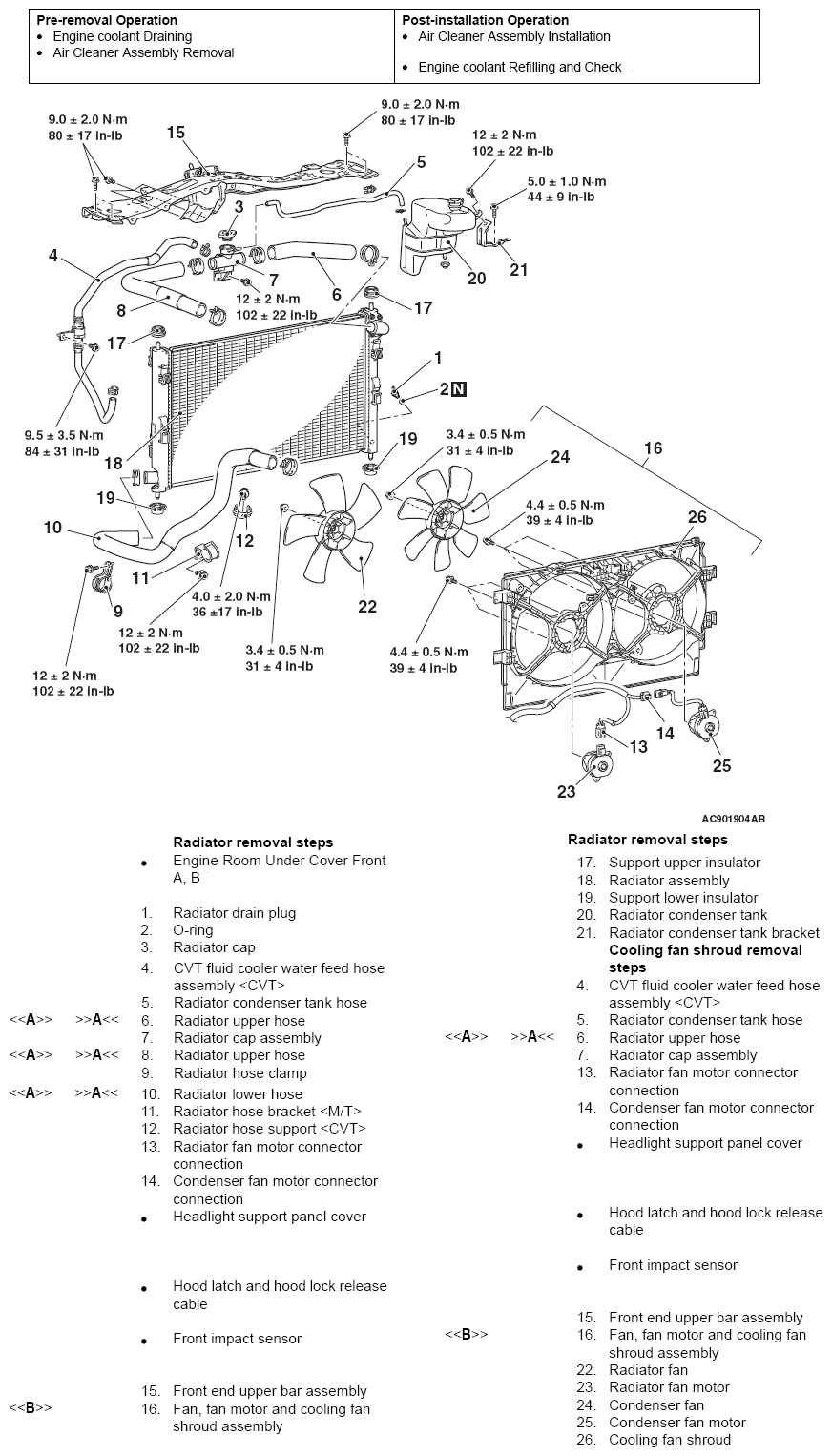

Fig 1: Radiator Replacement Components With Torque Specifications

G06671793

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
