Fan Control Relay Check

VOLTAGE SPECIFICATION

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 2 - 4 Continuity (Less than 2 ohms)
2 - 5 Open circuit
Connect terminal number 1 and battery (+) terminal.
Connect terminal number 3 and battery (-) terminal.		 2 - 4 Open circuit
2 - 5 Continuity (Less than 2 ohms)

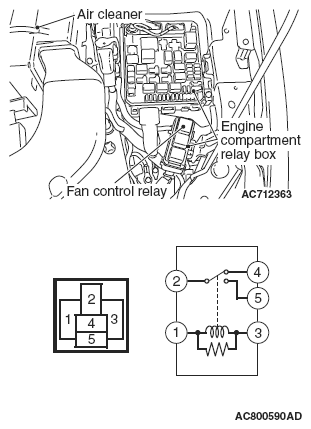

Fig 1: Identifying Engine Compartment Relay Box And Fan Control Relay
G06671755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
