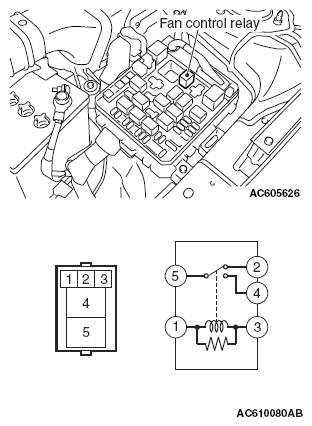

Fan Control Relay Check
VOLTAGE SPECIFICATION
| Battery voltage | Terminal number to be connected to tester | Continuity test results |
|---|---|---|
| Not applied | 2 - 5 | Continuity (Less than 2 ohms) |
| 4 - 5 | Open circuit | |
| Connect terminal number 1 and battery (+) terminal. Connect terminal number 3 and battery (-) terminal. |
2 - 5 | Open circuit |
| 4 - 5 | Continuity (Less than 2 ohms) |
