Construction Diagram

<2.0L ENGINE Non-turbo, 2.4L ENGINE>

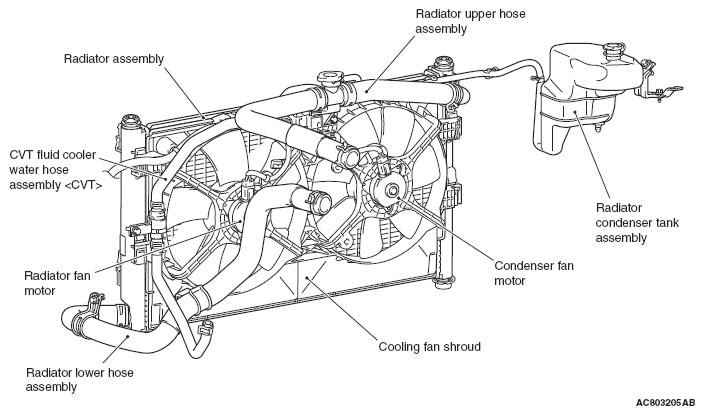

Fig 1: Identifying Radiator Assembly, Radiator Upper Hose Assembly And Cooling Fan Shroud (Engine Non-turbo, 2.4L Engine)
G06671732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<2.0L ENGINE Turbo>

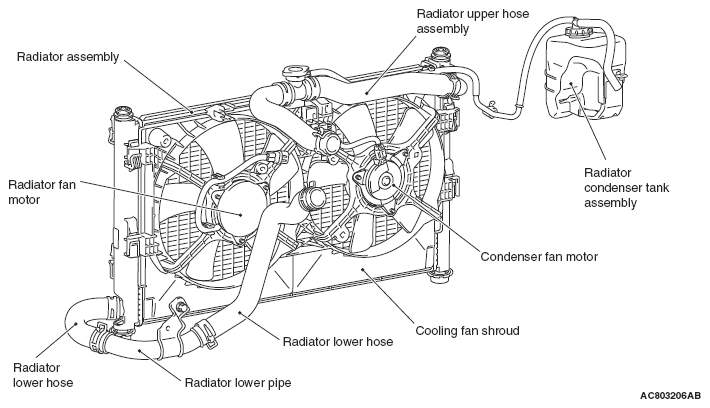

Fig 2: Identifying Radiator Assembly, Radiator Upper Hose Assembly And Cooling Fan Shroud (2.0L Engine Turbo)
G06671733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
