Inspection Procedure 6: The multi information display screen cannot be changed with the operation of the meter information switch: Notes

CAUTION: Before replacing the combination meter, be sure to check that the power supply circuit, ground circuit, and communication circuit are normal.

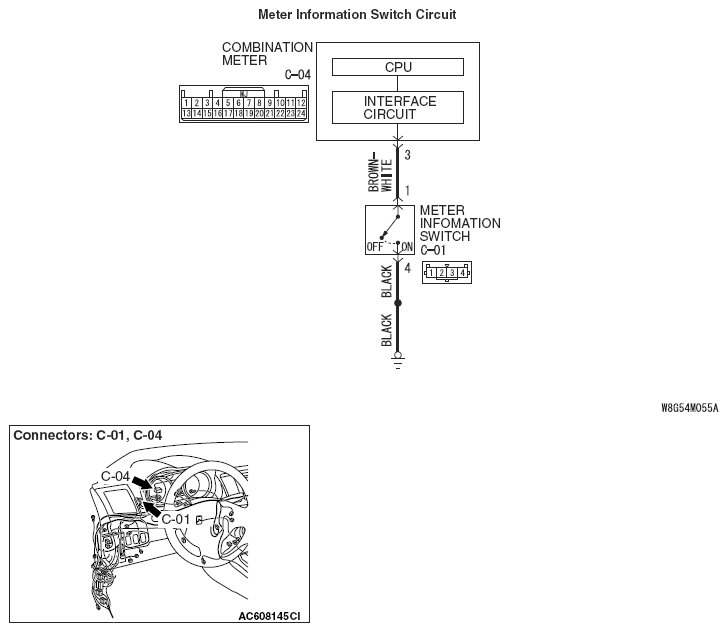

Fig 1: Meter Information Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
