Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Electrical >> Gauges >> Combination Meter -- Lancer >> Troubleshooting >> Symptom Procedures >> Inspection Procedure 1: Power supply circuit check >> Notes

Inspection Procedure 1: Power supply circuit check: Notes

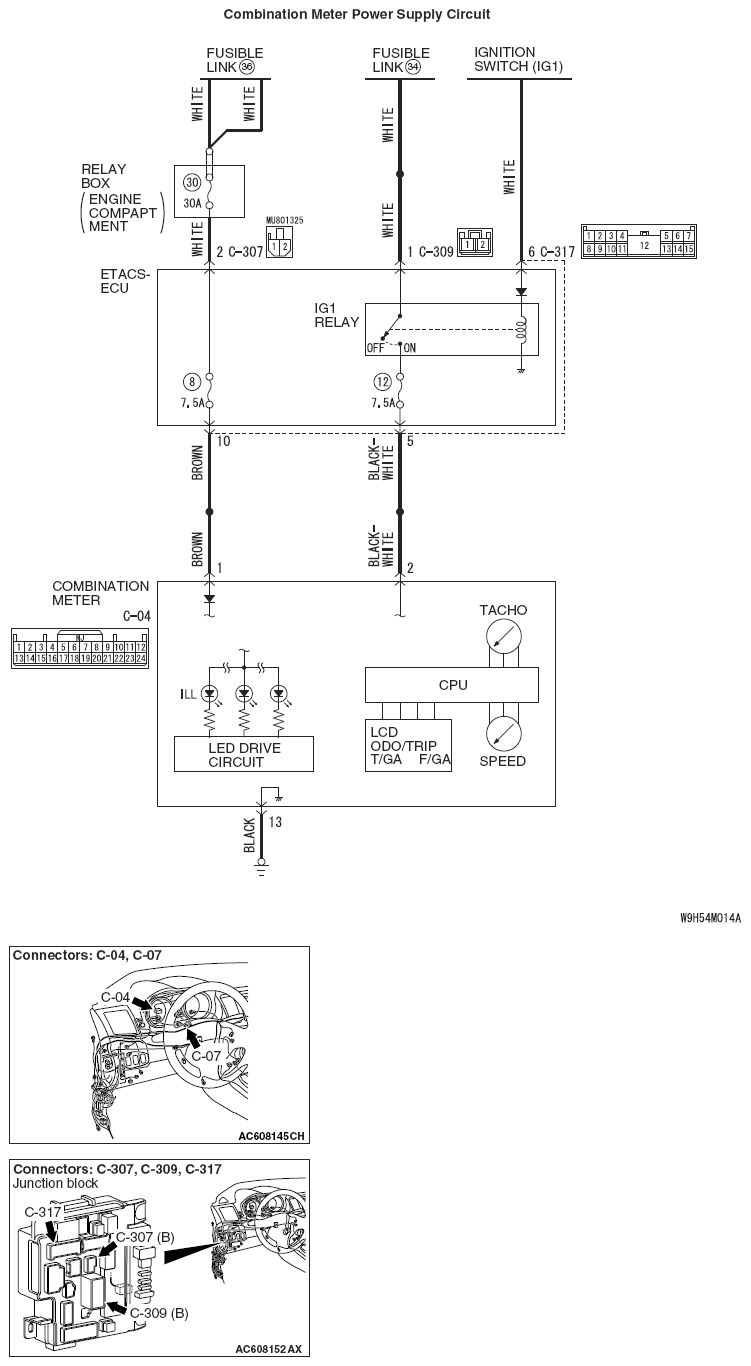

Fig 1: Combination Meter Power Supply Circuit Diagram

G06669383

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
