DTC B1208: Malfunction of LCD heater: Diagnosis

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicles Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

Recheck for diagnostic trouble code.

Check again if the DTC is set to the combination meter.

1. Connect scan tool MB991958. Refer to "HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)  ."
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the DTC set?

   1. YES:  Replace the combination meter.
   2. NO:  The procedure is complete.

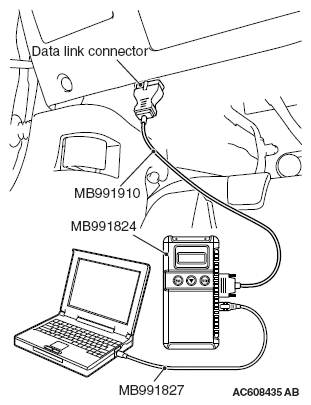

      Fig 1: Connecting Special Tool MB991910 To Data Link Connector

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
