Removal And Installation (2.0L Engine Turbo): Notes

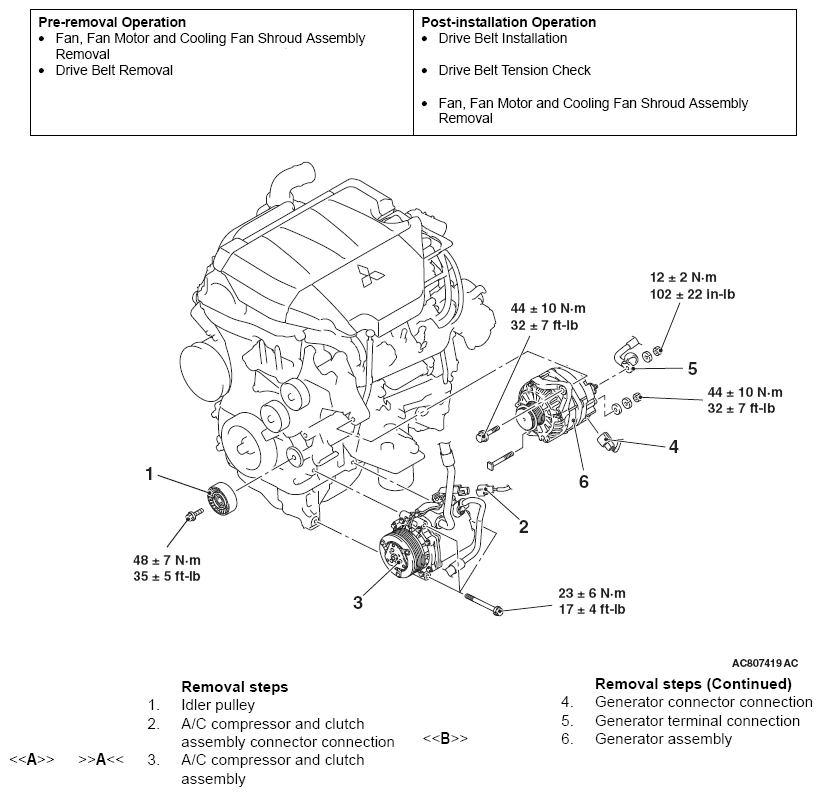

Fig 1: Charging System Replacement Components With Torque Specifications
G06671887Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
