Inspection (2.0L Engine Turbo): Pulley

  1. Set the special tool MB992226 to the pulley.
  2. Fix the special tool MB9922226, with the glasses wrench to prevent the rotor shaft from rotating.
  3. Lock the pulley when rotating it clockwise. Check that the pulley rotates smoothly when rotating it counterclockwise.
    CAUTION: Locking the one-way clutch might cause the damaged drive belt and an abnormal noise.

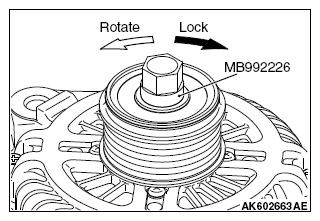

    Fig 1: Setting Special Tool (MB992226) To Pulley
    G06671903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
