Inspection (2.0L Engine Turbo): Brush

  1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.

    Limit: 2 mm (0.1 inch) minimum

  2. Unsolder the lead of the brush. The brush will come out, becoming ready for removal.

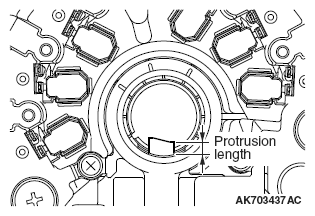

    Fig 1: Identifying Protrusion Length
    G06671909Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install a new brush by pushing it into the holder as shown in the drawing and soldering the lead.
    Fig 2: Identifying Solder Location
    G06671910Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
