Inspection (2.0L Engine Non-Turbo, 2.4L Engine): Pulley

Lock the pulley when rotating it clockwise. Check that the pulley rotates smoothly when rotating it counterclockwise.

CAUTION: Locking the one-way clutch might cause the damaged drive belt and an abnormal noise.

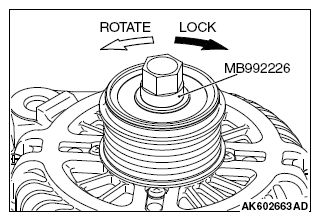

Fig 1: Checking Pulley Rotation
G06671878Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
