Propeller Shaft -- Lancer
>>
Propeller Shaft
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

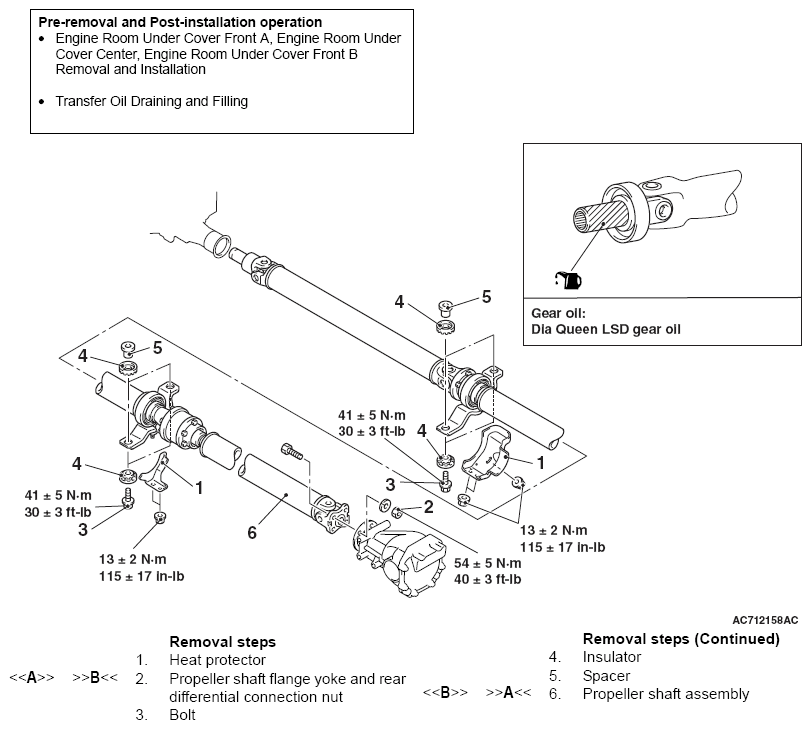

Fig 1: Propeller Shaft Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
