Lubrication And Adhesive Points

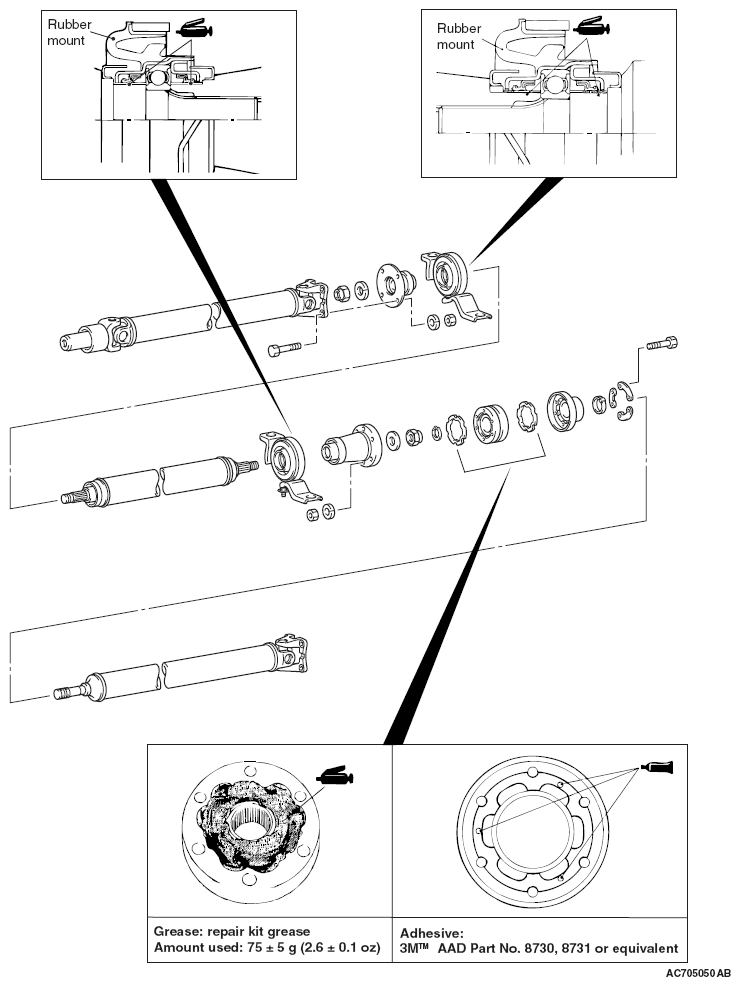

Fig 1: Identifying Lubrication And Adhesive Points Of Propeller Shaft
G06672470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
