>>A<< Brake Tube Connection

Install the brake pipe to the hydraulic unit as shown in the illustration.

1. To rear brake (RH) <Marking color: White>
2. From master cylinder (secondary) <Marking color: Yellow and white>
3. To front brake (LH) <Marking color: Red and white>
4. To front brake (RH) <Marking color: Orange and white>
5. From master cylinder (primary) <Marking color: Blue and white>
6. To rear brake (LH) <Marking color: Pink>

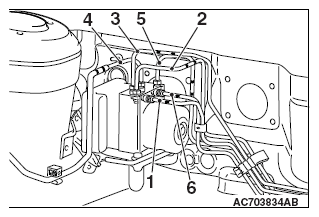

   Fig 1: Identifying Brake Tube Connection

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
