Schematic Diagram

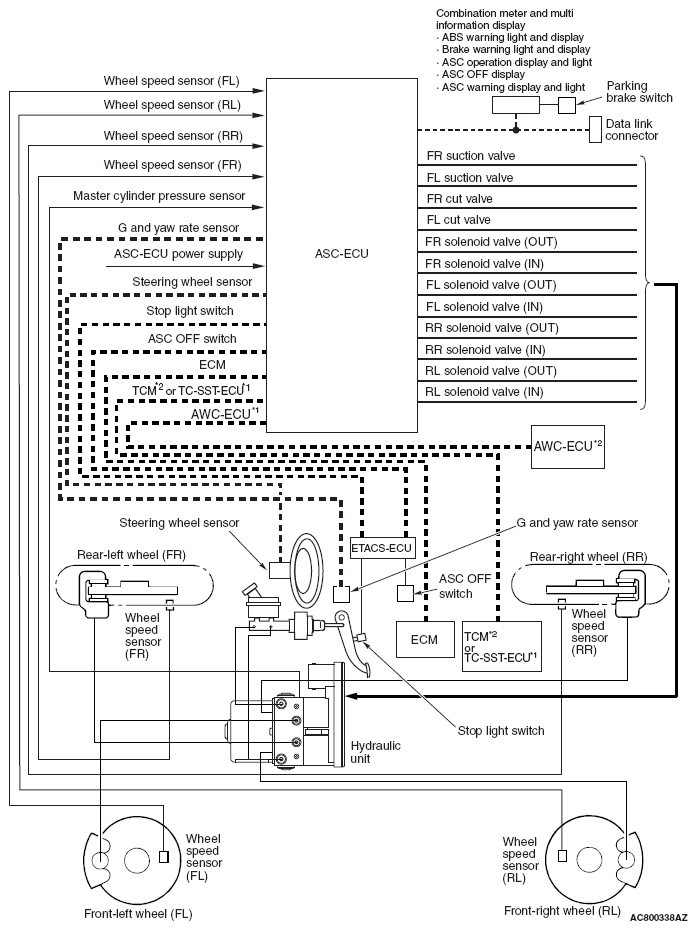

Fig 1: Active Stability Control System (ASC) Schematic Diagram

G06665826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

Dashed lines indicate the CAN bus line.
^*1 : AWD
^*2 : CVT
