Removal And Installation

CAUTION:

Do not use impact wrench.
Do not drop or shock the G and yaw rate sensor.
When the G and yaw rate sensor is replaced or reinstalled, always carry out calibration to make ASC-ECU learn the neutral point (Refer to ALL SENSOR CALIBRATION (G AND YAW RATE SENSOR, STEERING WHEEL SENSOR, BRAKE FLUID PRESSURE SENSOR) ).

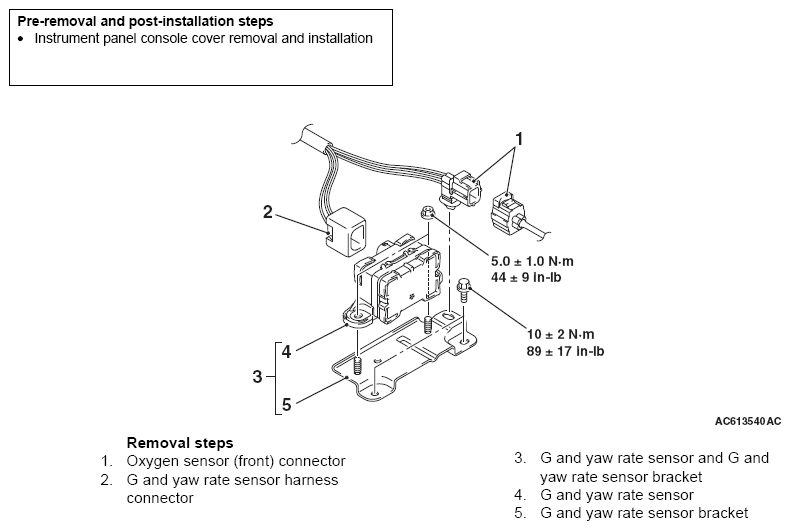

Fig 1: G And Yaw Rate Sensor Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
