Inspection Procedure 9: The skid control/TCL system cannot be disabled when ASC OFF switch is pressed for 3 seconds or more to turn the system OFF: Notes

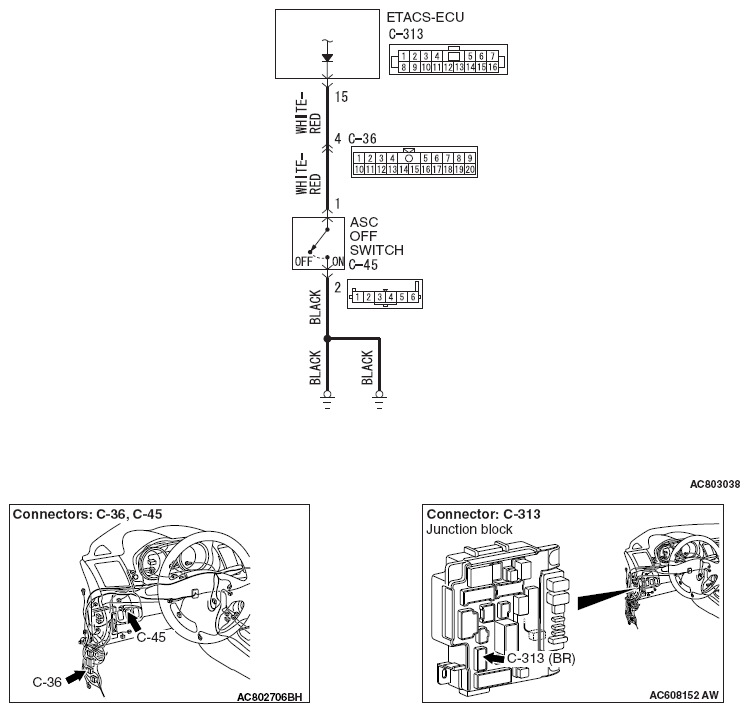

Fig 1: ACS OFF Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to TROUBLE CODE DIAGNOSIS ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
