Inspection Procedure 12: ASC-ECU power supply circuit system: Notes

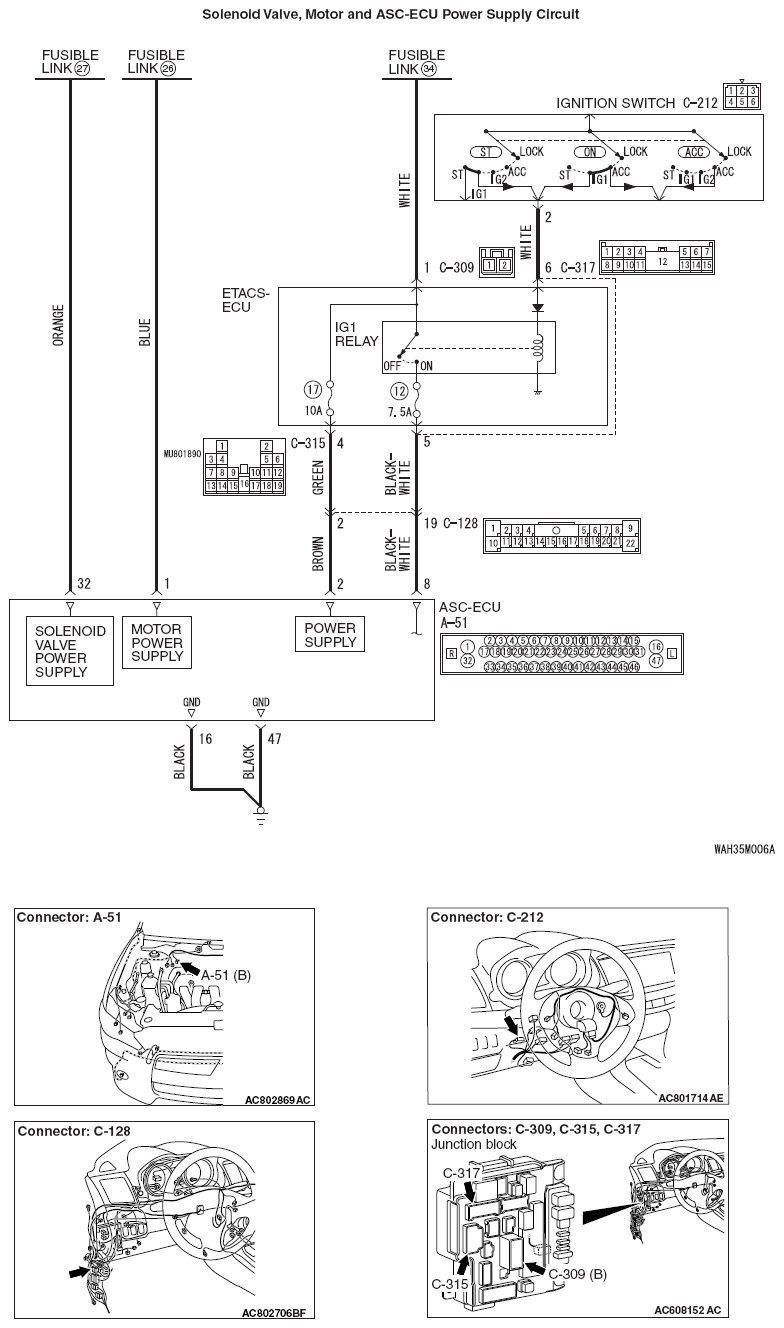

Fig 1: Solenoid Valve, Motor And ASC-ECU Power Supply Circuit Diagram
G06665928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
  • When the ASC-ECU power supply voltage becomes 9.7 ± 0.3 V or less, the ABS warning lamp, ASC warning display, and ASC OFF display illuminate, and the ABS, stability control, and TCL controls are prohibited.
  • If the battery terminal is not tightened properly, a dump surge may occur and the power supply voltage may become abnormally high for a short time.
  • If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to TROUBLE CODE DIAGNOSIS ).
  • Whenever ECU is replaced, ensure that the CAN bus lines are normal.
  • When the hydraulic unit (integrated with ASC-ECU) is replaced, always carry out the calibration of the steering wheel sensor, the G and yaw rate sensor and brake fluid pressure sensor (Refer to ALL SENSOR CALIBRATION (G AND YAW RATE SENSOR, STEERING WHEEL SENSOR, BRAKE FLUID PRESSURE SENSOR)  , STEERING WHEEL SENSOR CALIBRATION  and BRAKE FLUID PRESSURE SENSOR CALIBRATION  ).
