Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brakes -- Lancer >> Parking Brake Lining And Drum >> Removal And Installation (RALLIART) >> Notes

Removal And Installation (RALLIART): Notes

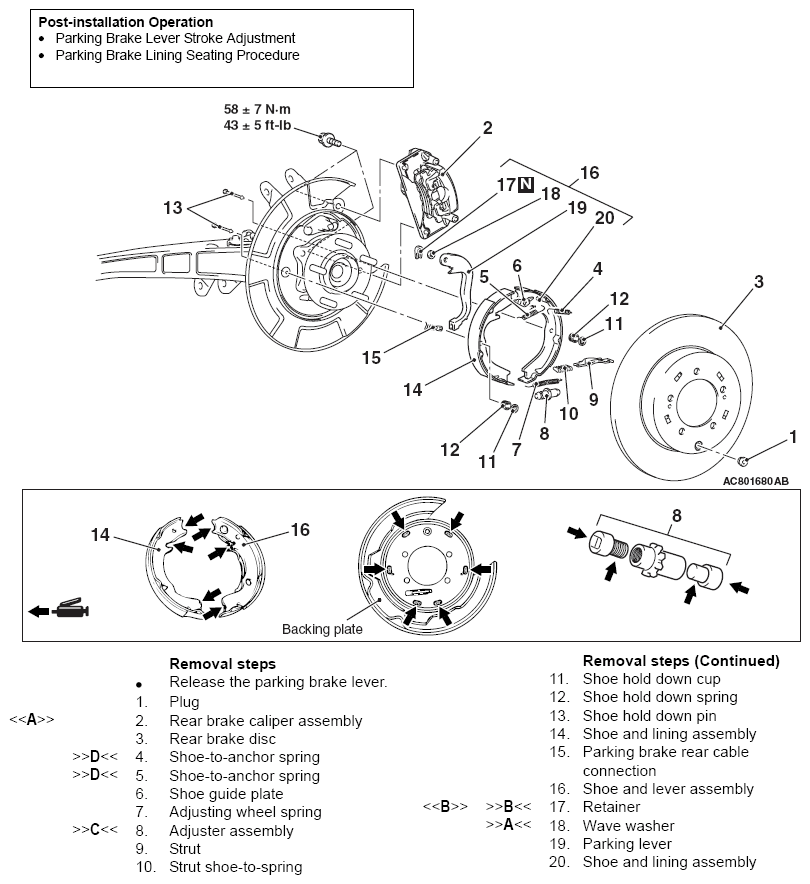

Fig 1: Parking Brake Lining And Drum Replacement Components - Ralliart With Torque Specifications

G06672946

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
