Removal And Installation (Except RALLIART): Notes

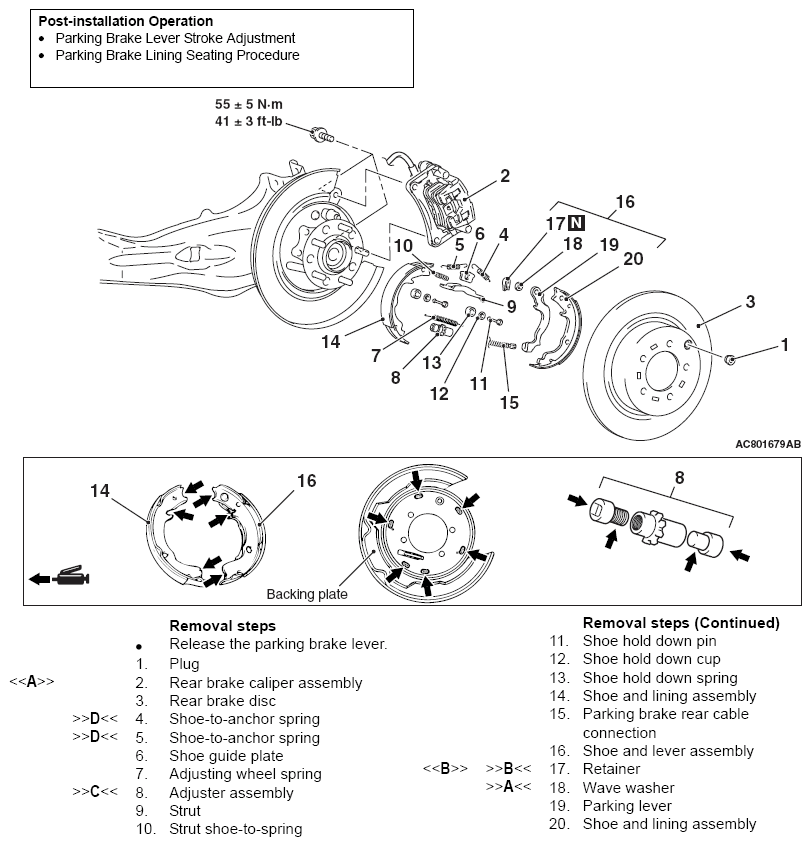

Fig 1: Parking Brake Lining And Drum Replacement Components - Except Ralliart With Torque Specifications

G06672940

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
