>>D<< Shoe-To-Anchor Spring Installation

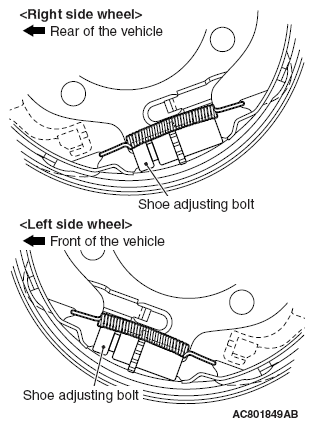

Fig 1: Identifying Shoe Adjusting Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The shoe-to-anchor springs are not interchangeable because their spring loads are different. The one with blue paint mark should be installed to the front of the vehicle, and the other with yellow paint to the rear of the vehicle, respectively.

Fig 2: Locating Paint Mark On Shoe-To-Anchor Springs

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
