LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2010
>>
Lancer ES, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Parking Brakes -- Lancer
>>
Parking Brake Cable
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

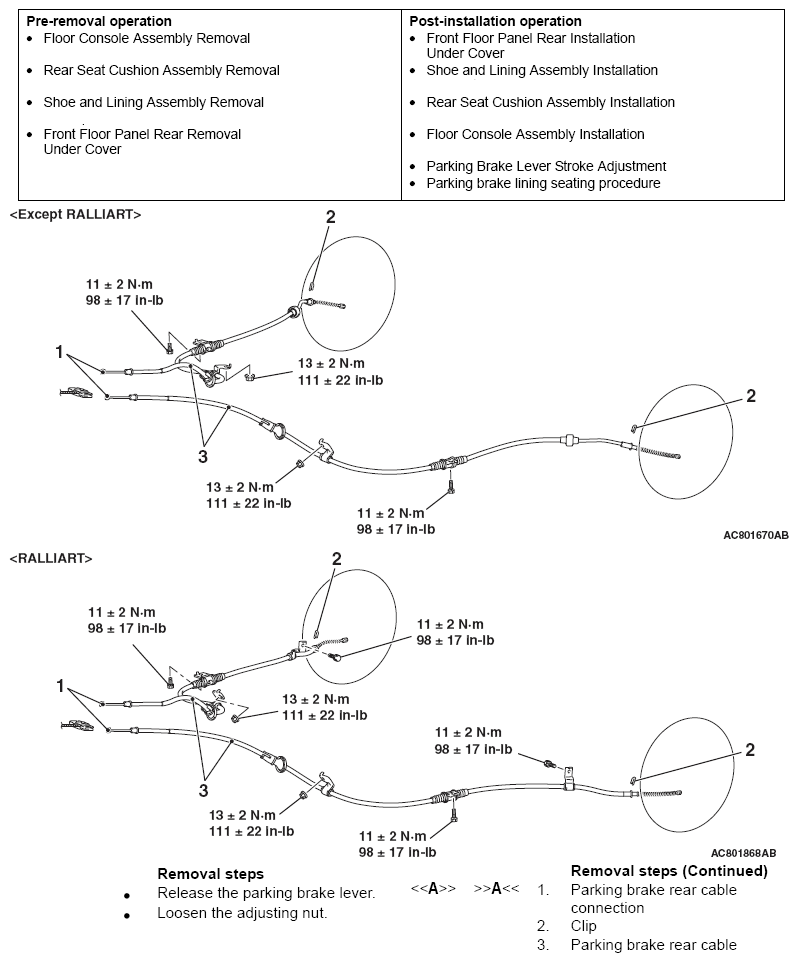

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
