Removal And Installation

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

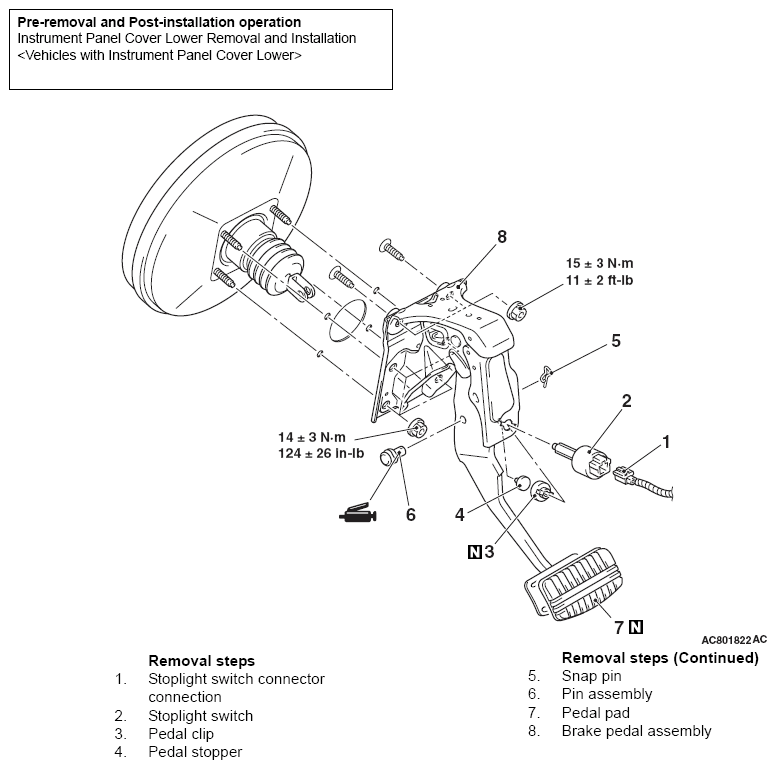

Fig 1: Brake Pedal Replacement Components With Torque Specifications
G06672882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
