>>A<< Windshield Spacer/Glass Stopper/Windshield Upper Molding/Windshield Side Molding Installation

CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.
  1. Use 3M™ AAD Part number 8906 or equivalent to degrease the inside and outside of the windshield and the body flanges.

    Windshield spacer and glass stopper installation position

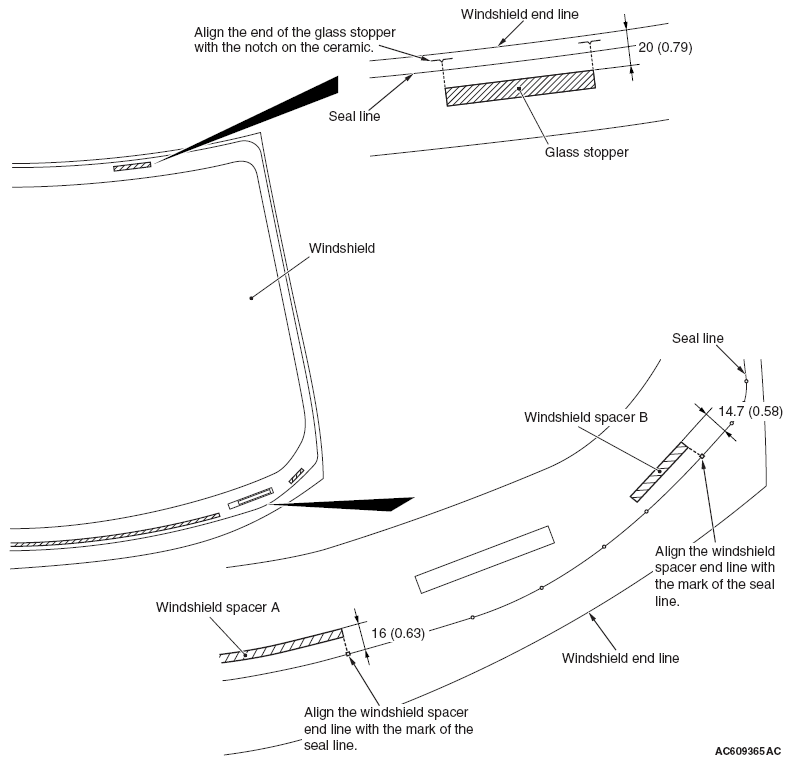

    Fig 1: Identifying Windshield Spacer And Glass Stopper Installation Position
    G06673077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the windshield spacer and glass stoppers to the specified positions so that there are no adrift or warped surfaces inside the windshield.

    Adhesive tape installation position

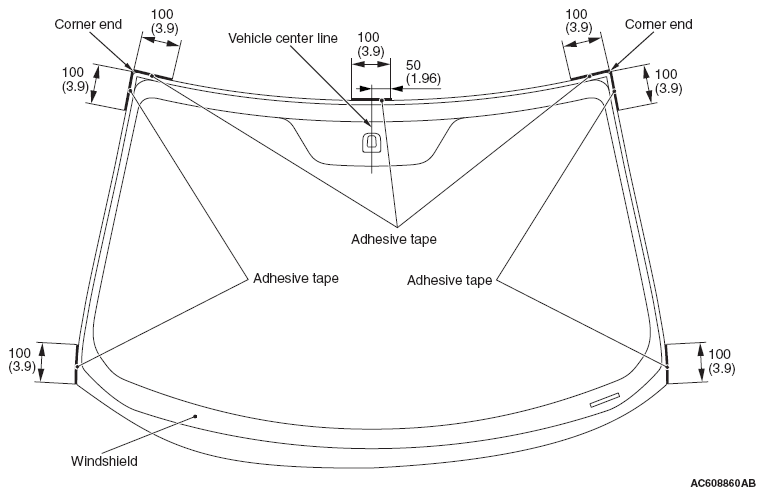

    Fig 2: Identifying Adhesive Tape Installation Position
    G06673078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the adhesive tape to the windshield.
  4. Install the windshield molding and front deck garnish retainer to the windshield.
