Sunroof -- Lancer
>>
Sunroof
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

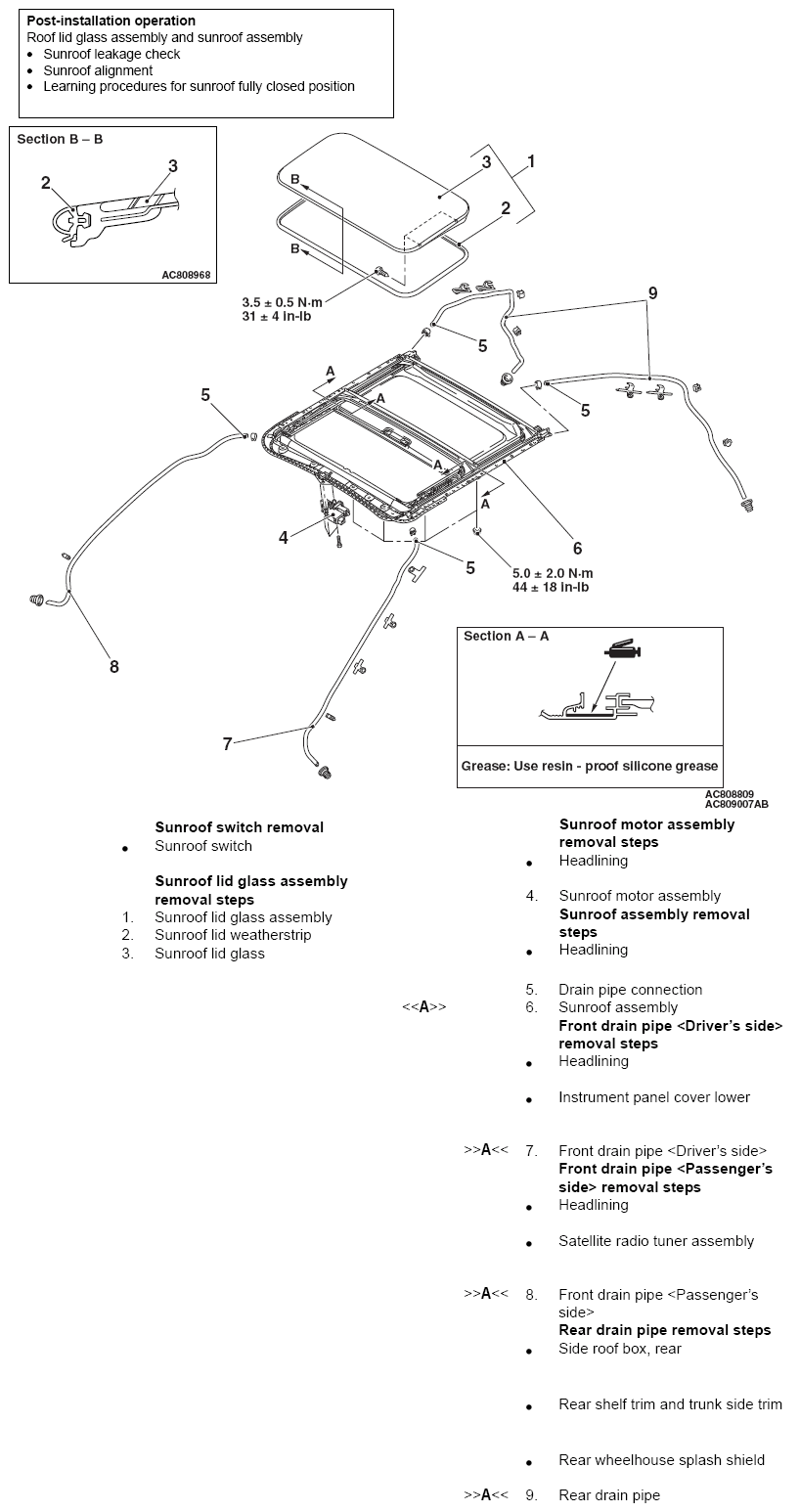

Fig 1: Exploded View Of Sunroof With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
