Disassembly And Assembly: Notes

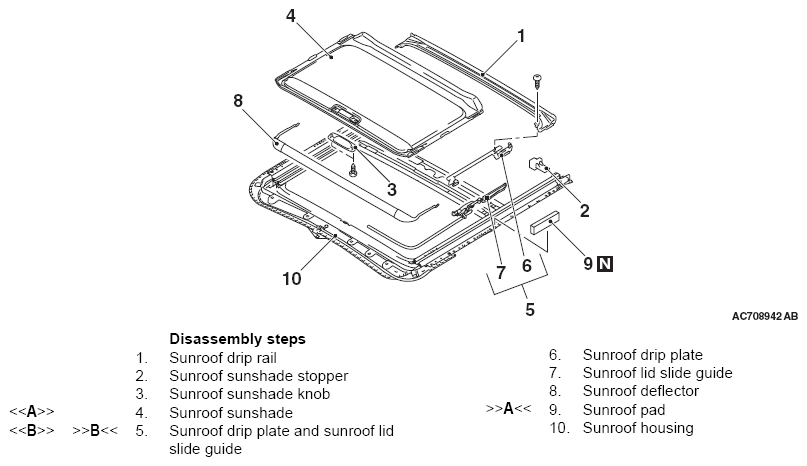

Fig 1: Disassembled View Of Sunroof

G06673136

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
