INSPECTION PROCEDURE 2: The Sunroof Lid Glass does not Tilt-up (Tilt-down, Open, and Close Normally): Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

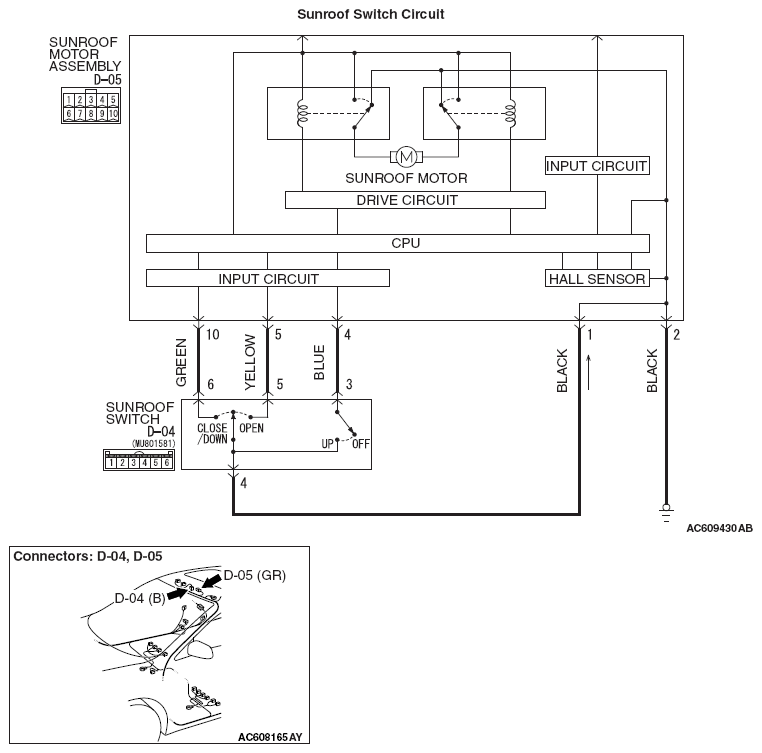

Fig 1: Sunroof Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
