INSPECTION PROCEDURE 1: Sunroof does not work at All: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

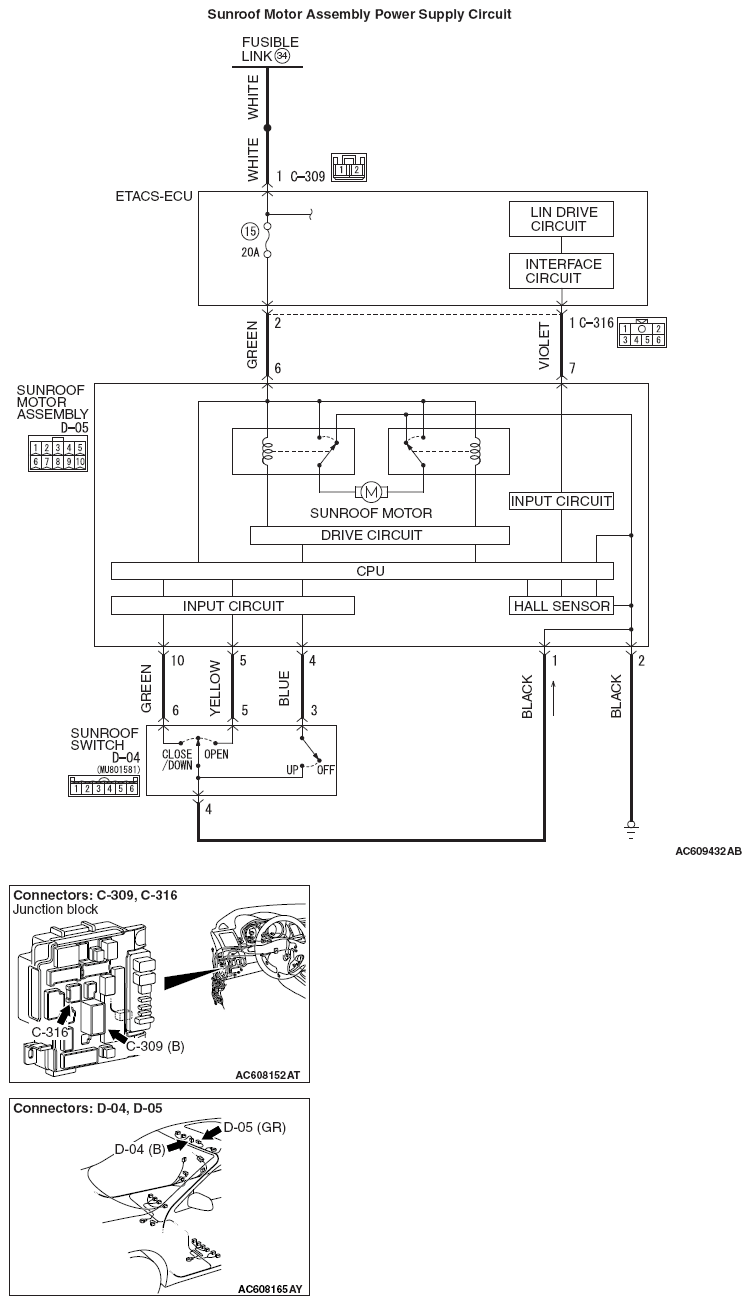

Fig 1: Sunroof Motor Assembly Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
