CODE NO. L0632: S/R Switch fail: Notes

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

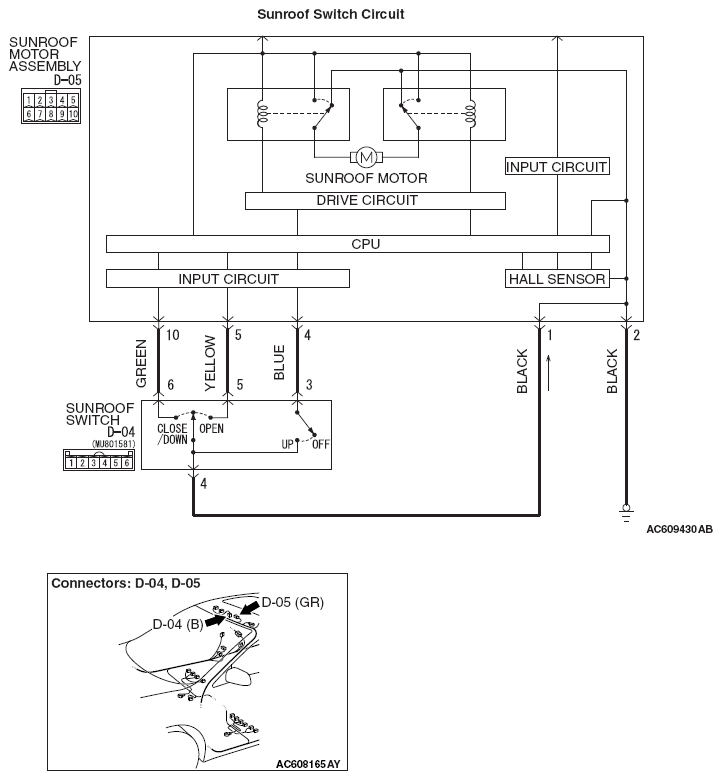

Fig 1: Sunroof Switch Circuit Diagram
G06673103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
