CODE NO. L0630: S/R Power supply: Notes

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

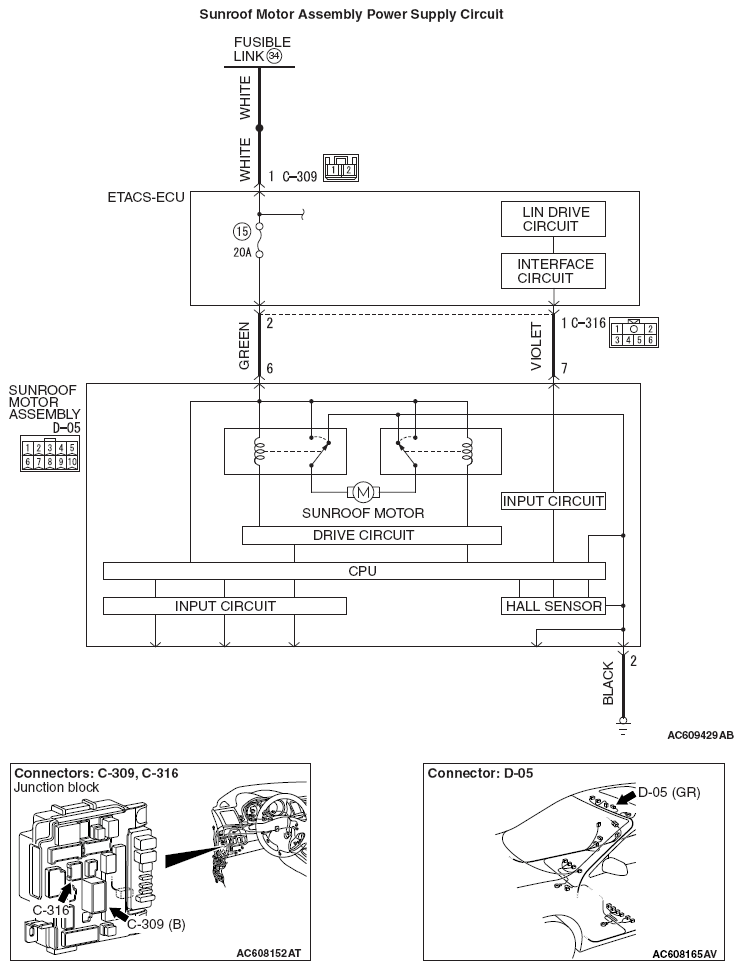

Fig 1: Sunroof Motor Assembly Power Supply Circuit Diagram
G06673102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
