Removal And Installation: Notes

CAUTION:

Do not disassemble or throw the trunk lid gas spring into fire.
Punch a hole in the trunk lid gas spring before disposal to release the gas inside.
Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.

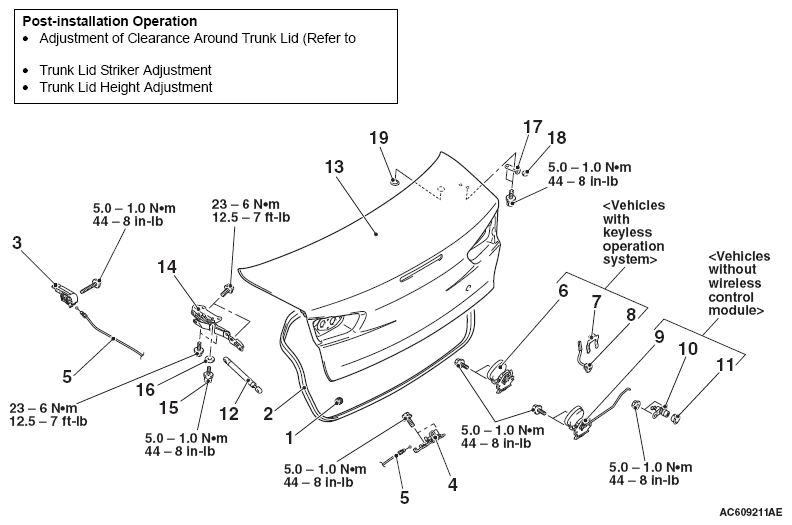

Fig 1: Exploded View Of Trunk Lid (1 Of 2) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Trunk Lid (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
