System configuration

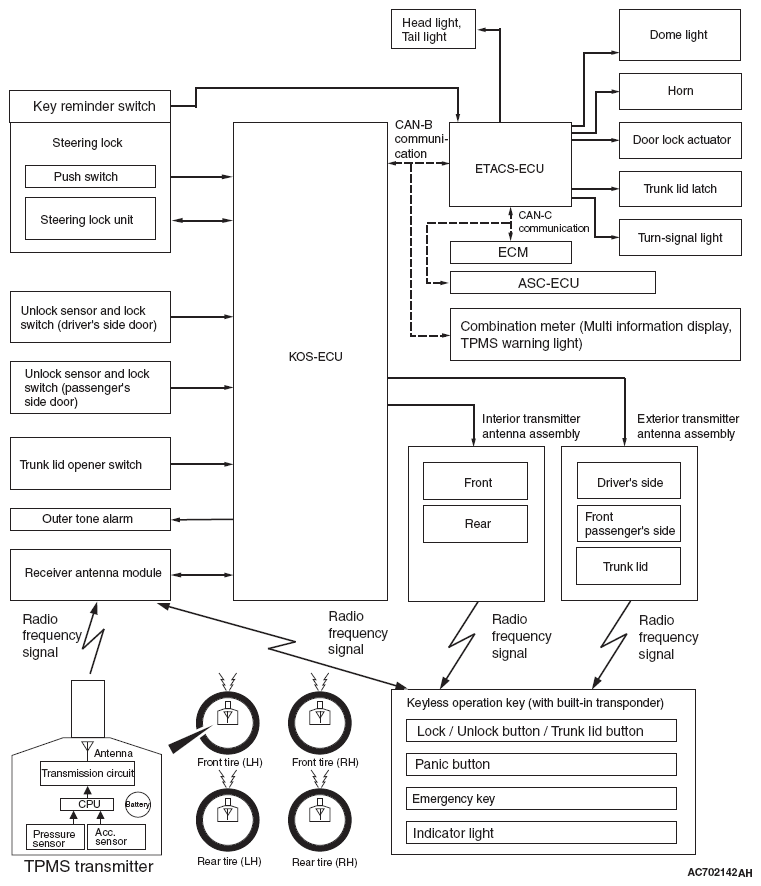

Fig 1: Keyless Operation System - Configuration Diagram

G06665968

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
