Inspection Procedure 2: The keyless operation key cannot be registered using scan tool: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

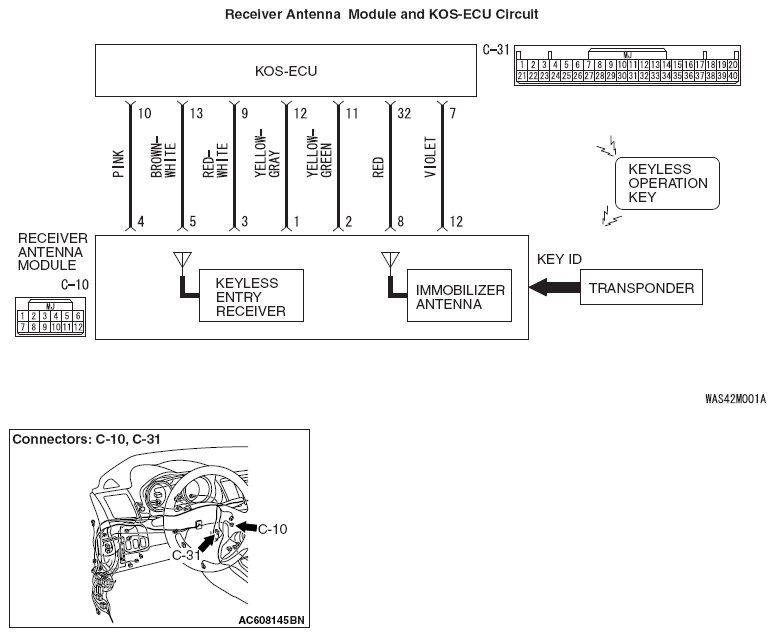

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
