Inspection Procedure 18: Outer tone alarm does not sound: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

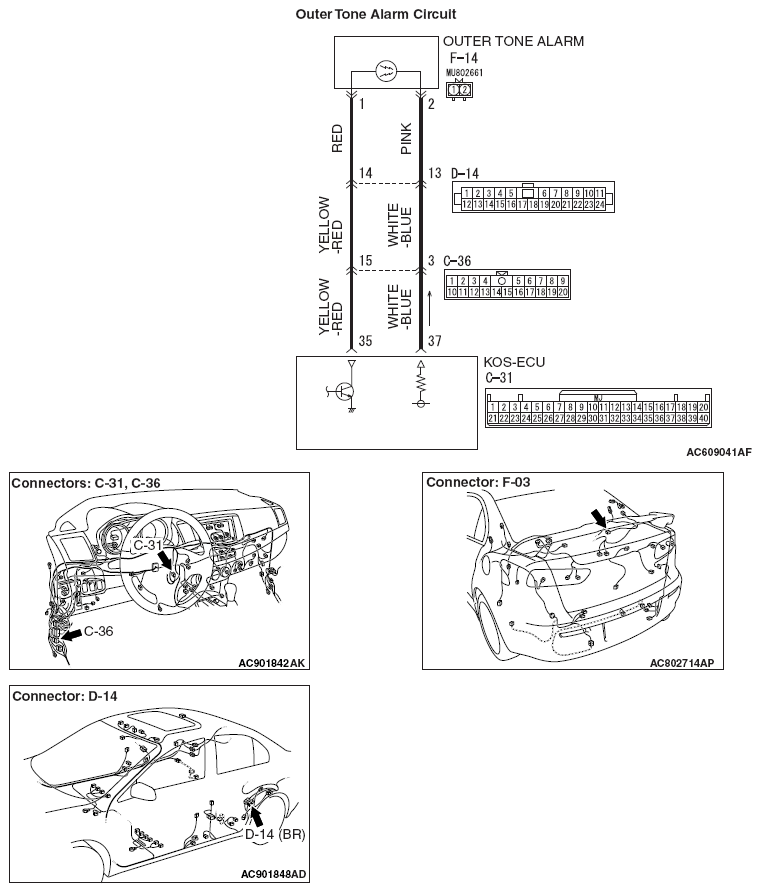

Fig 1: Outer Tone Alarm Circuit Diagram
G06666087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
