Inspection Procedure 17: The Trunk is not opened when the keyless operation key "TRUNK" button is operated: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

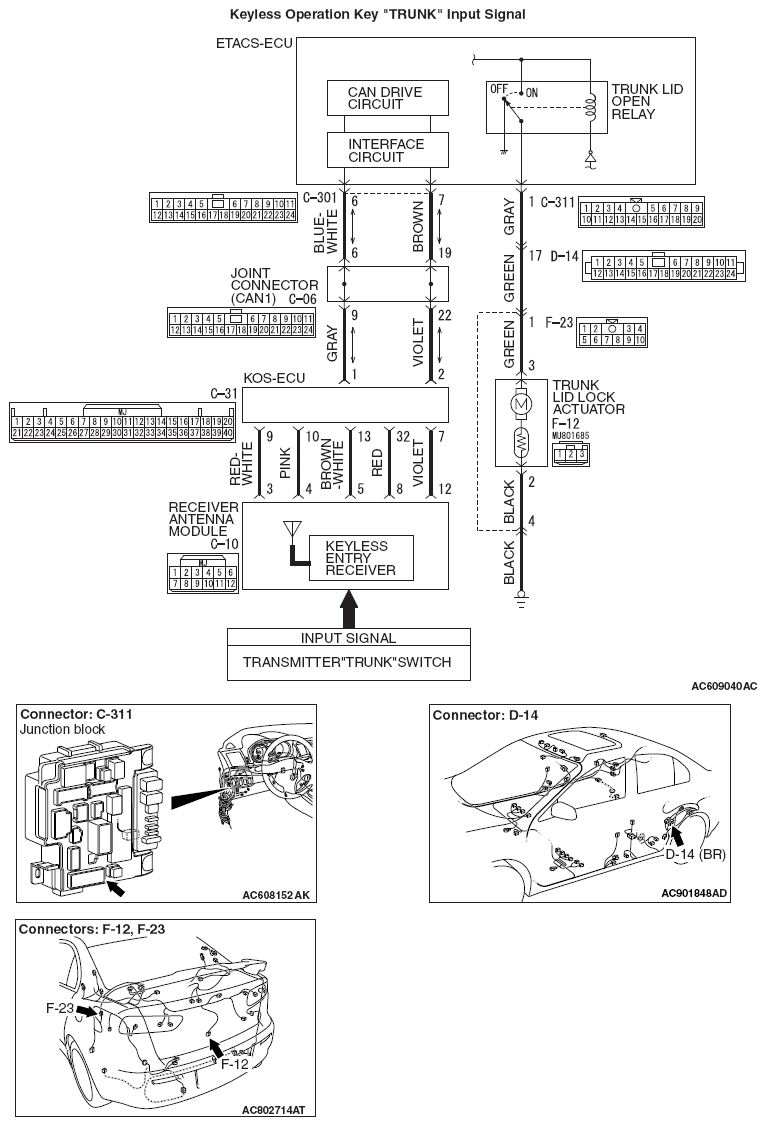

Fig 1: Keyless Operation Key "TRUNK" Input Signal Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
