Inspection Procedure 11: Front passenger's door lock switch does not work: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

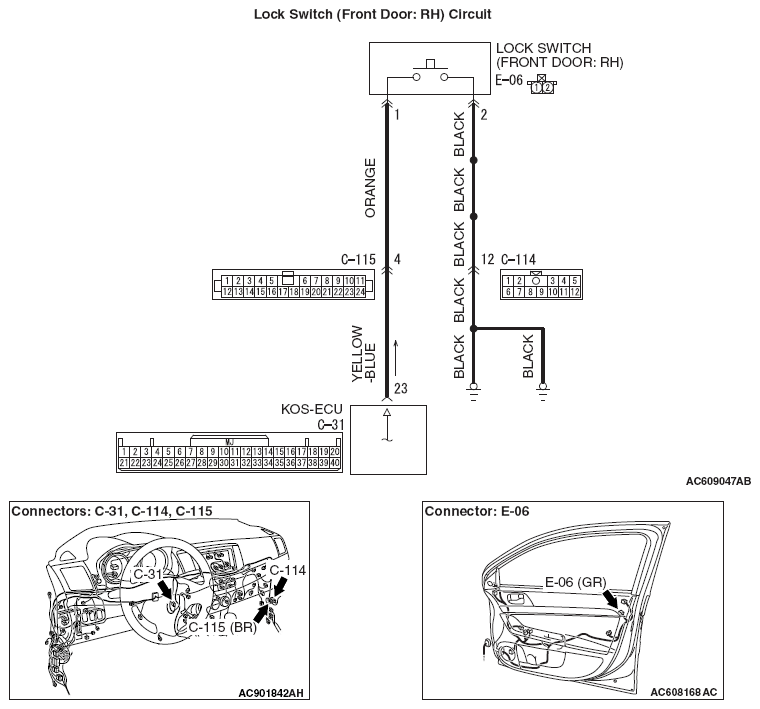

Fig 1: Lock Switch (Front Door RH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
