DTC B2414: Unlock sensor fail: Notes

CAUTION:
  • If DTC No. B2414 is set, diagnose the CAN bus lines.
  • When replacing the ECU, always check that the communication circuit is normal.

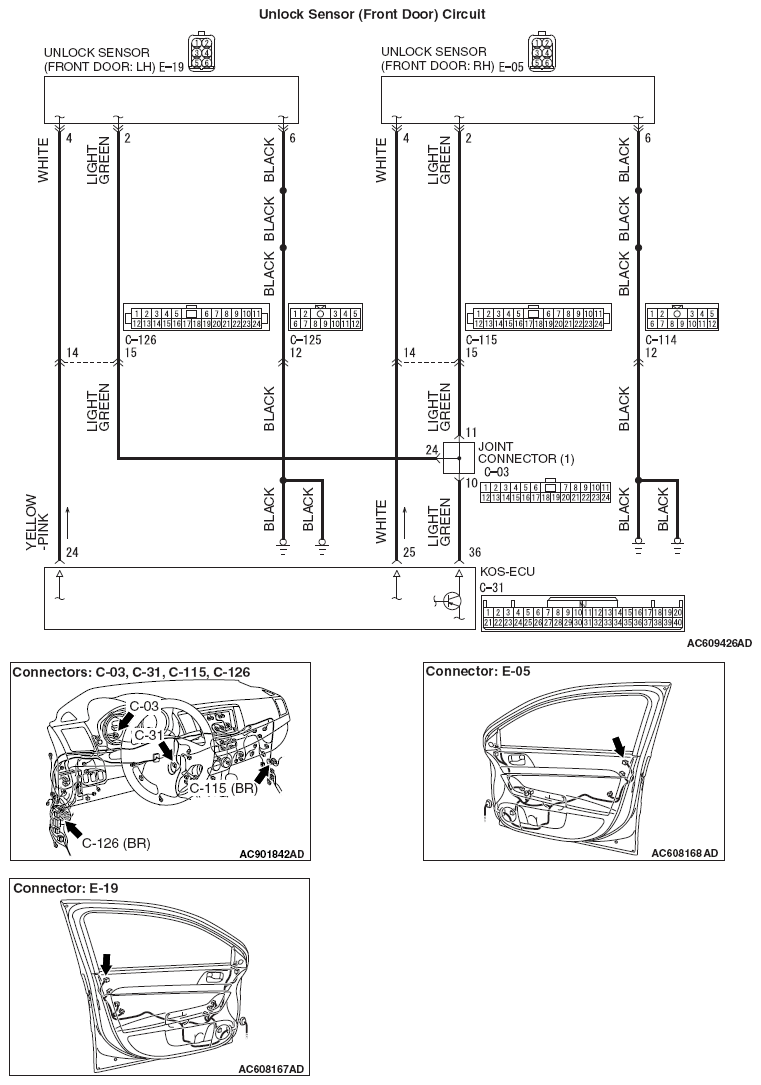

    Fig 1: Unlock Sensor (Front Door) Circuit Diagram
    G06666031Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
