DTC B240E: RR antenna(indoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

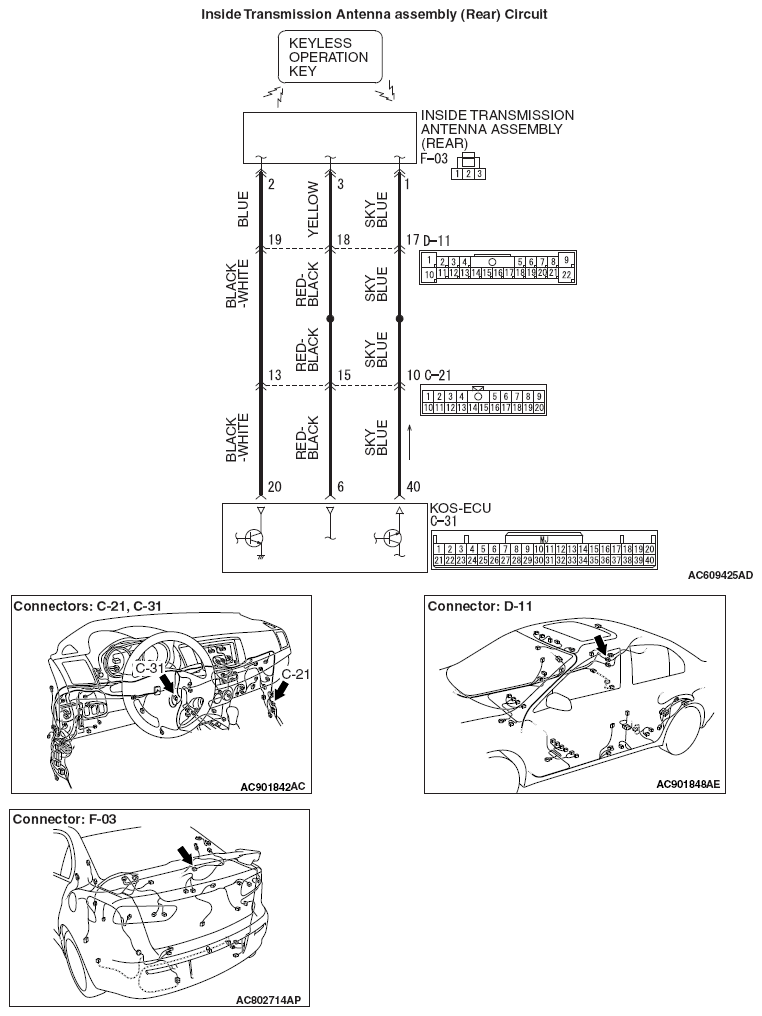

Fig 1: Inside Transmission Antenna Assembly (Rear) Circuit Diagram
G06666025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
