DTC B240D: Front antenna(indoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

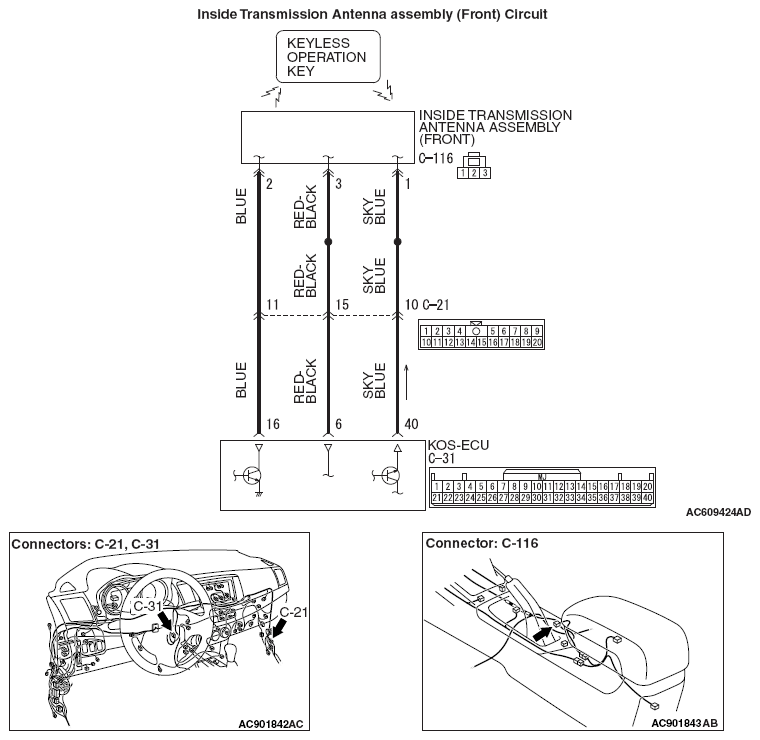

Fig 1: Inside Transmission Antenna Assembly (Front) Circuit Diagram
G06666024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
