DTC B240B: PS side antenna(outdoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

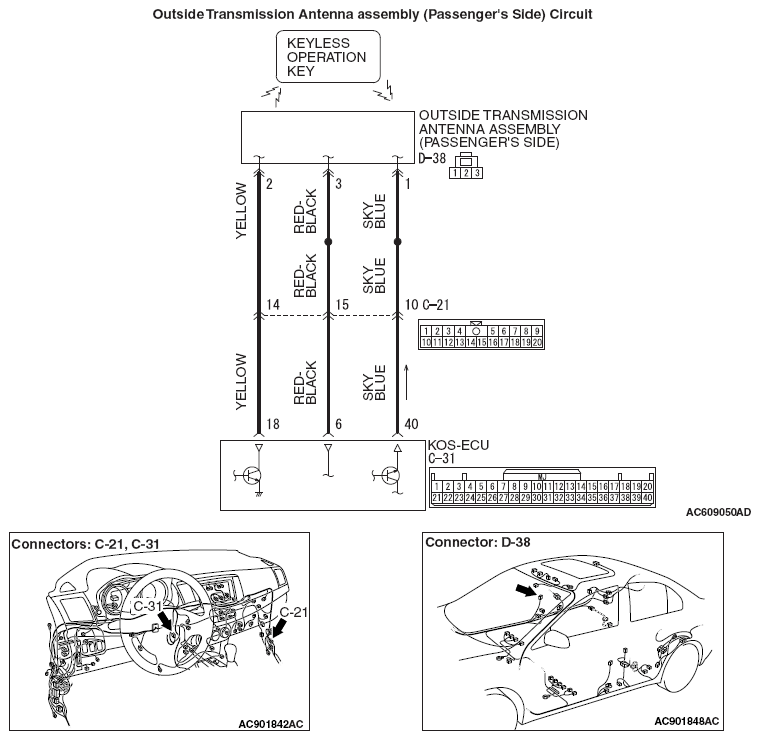

Fig 1: Outside Transmission Antenna Assembly (Passenger'S Side) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
