DTC B240A: DR side antenna(outdoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

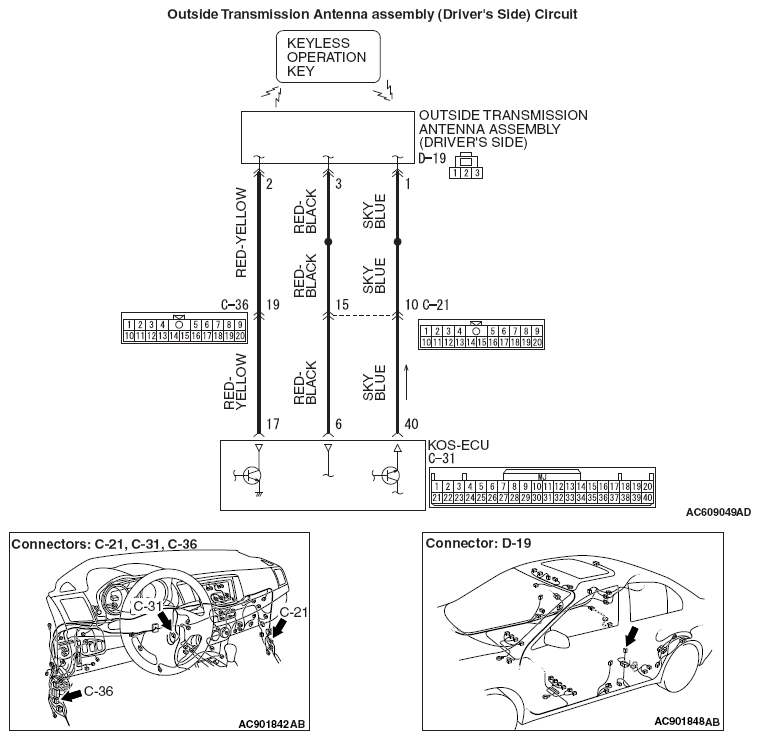

Fig 1: Outside Transmission Antenna Assembly (Driver'S Side) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
