DTC B2409: STL unit comm.(No response): Notes

CAUTION:

If the DTC B2409 is set, diagnose the CAN bus lines.
Whenever the steering lock unit is replaced, ensure that the communication circuit is normal.

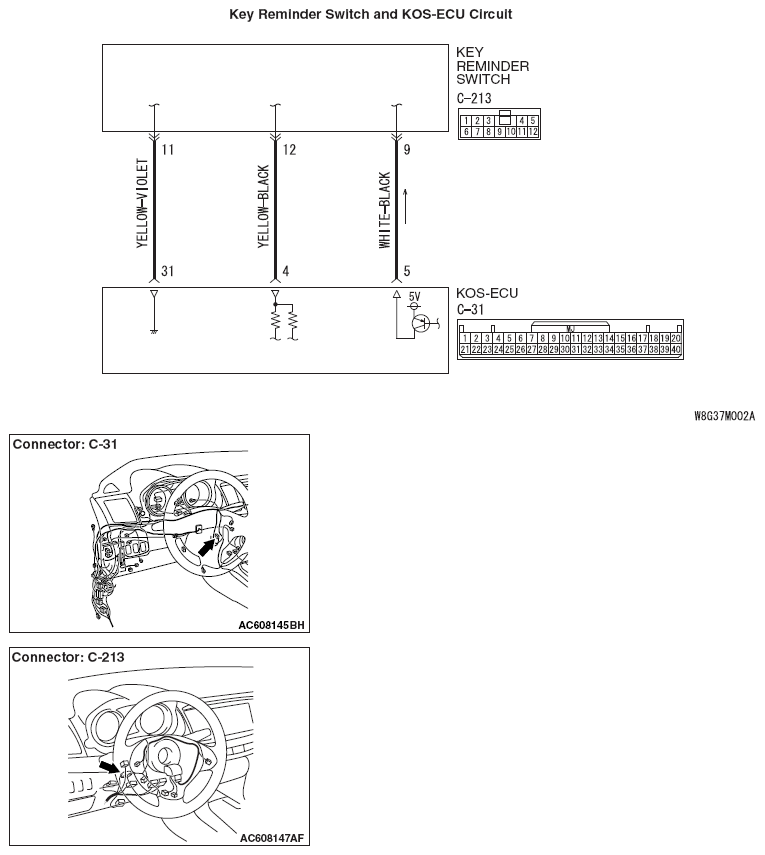

Fig 1: Key Reminder Switch And KOS-ECU Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
