DTC B2400: KOS key registration fail: Notes

CAUTION:
  • If the DTC B2400 is set, diagnose the CAN bus lines.
  • When replacing the ECU, always check that the communication circuit is normal.

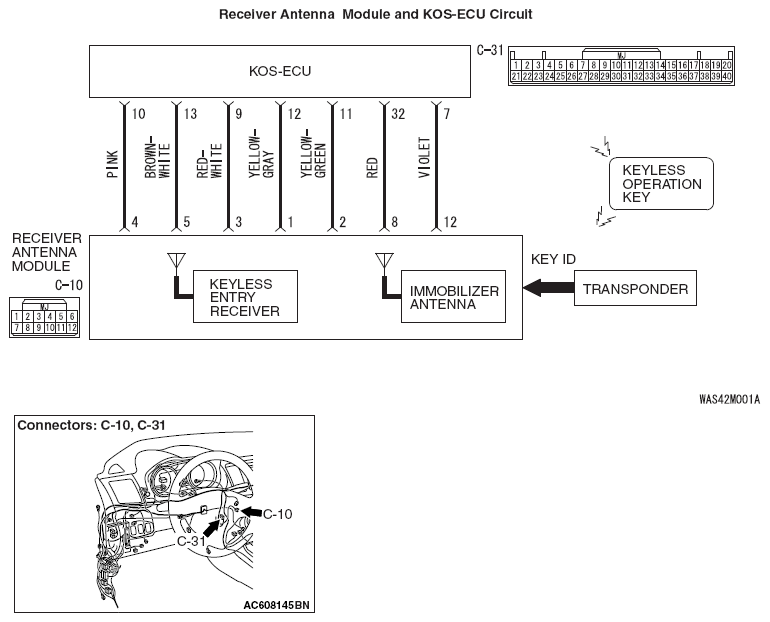

    Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram
    G06666014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
