Door Window Glass Adjustment

Check that the door glass operates smoothly and moves along the door glass run channel when the door window glass is fully raised and fully lowered. If there is a problem, adjust by the following procedure.

1. Remove the door trim assembly (Refer to DOOR TRIM ).
2. Remove the waterproof film (Refer to WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP  ).
3. Remove the grommet from the adjusting hole <Vehicles with 9 speakers (Rockford Fosgate® premium sound system)>.
4. Remove the power window switch from the removed door trim, and connect it to the connector, then set the channel guide mounting bolt to the adjusting hole. (Refer to DOOR SWITCH CHECK  ).
5. Raise the door window glass and loosen the channel guide mounting bolts to adjust tilting up/down of the glass.

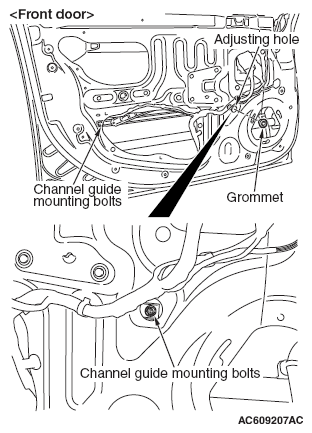

   Fig 1: Identifying Adjusting Hole, Grommet And Channel Guide Mounting Bolts (Front Door)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

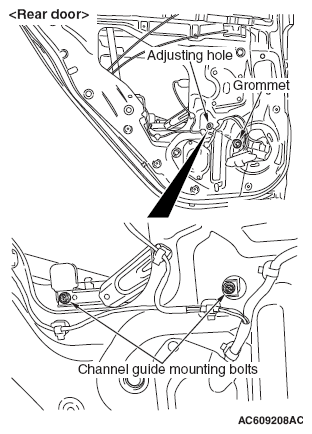

   Fig 2: Identifying Adjusting Hole, Grommet And Channel Guide Mounting Bolts (Rear Door)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
