Door Inside Handle Lock Knob Stroke Check

Remove the door trim assembly (Refer to DOOR TRIM ).
Check that the stroke of the door inside handle lock knob meets the standard value.
Standard value (B): 13.7 - 15.0 mm (0.54 - 0.59 inch) [Target value: 14.7 mm (0.58 inch)]

Fig 1: Identifying Door Inside Handle Lock Knob Stroke
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If it is outside the standard value, adjust the stroke of the inside handle lock knob by using the outer cable end, which connects the inside handle lock knob to the inside lock cable.

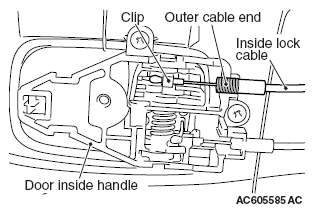

Fig 2: Identifying Door Inside Handle, Clip, Cable End And Inside Lock Cable
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
